Nickel 200 is a high-purity metal consisting primarily of nickel with a purity of 99.0%. Due to its excellent physical and chemical properties, it is widely used in various fields. Nickel alloy 200 bar can withstand corrosion from various acid and alkali liquids, and maintains stable performance at high temperatures. In addition, nickel 200 bar is an important electrical and thermal conductive material having good thermal and electrical conductivity. This metal can be processed and heated through various processes to make products of different shapes and specifications. Lastly, Nickel 200 is a commercially pure nickel. It is recommended for service at temperatures below 315°C (600°F) to avoid embrittlement due to graphite formation.
Product Parameters

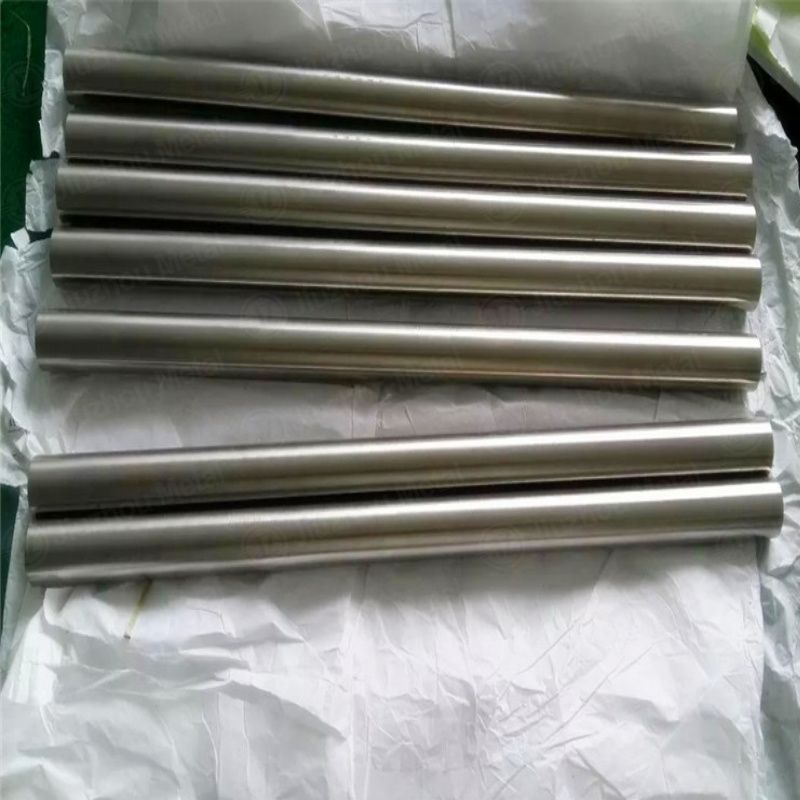

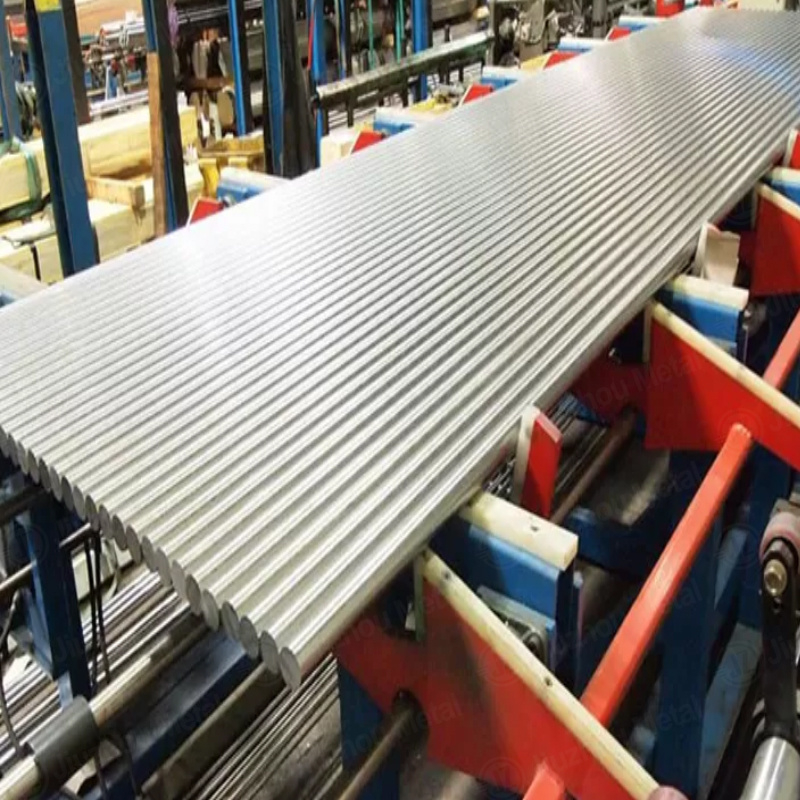

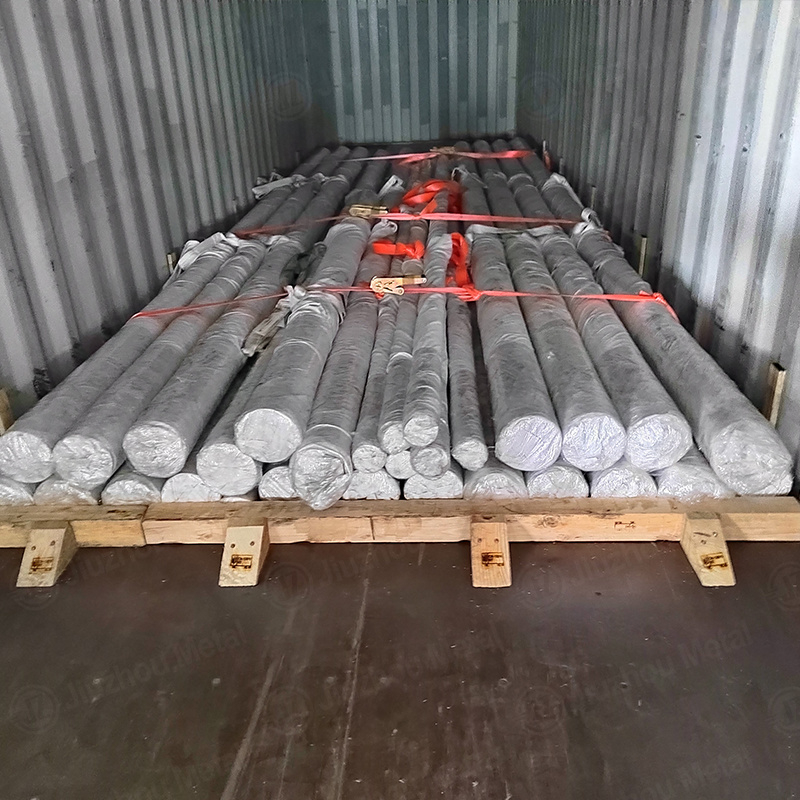

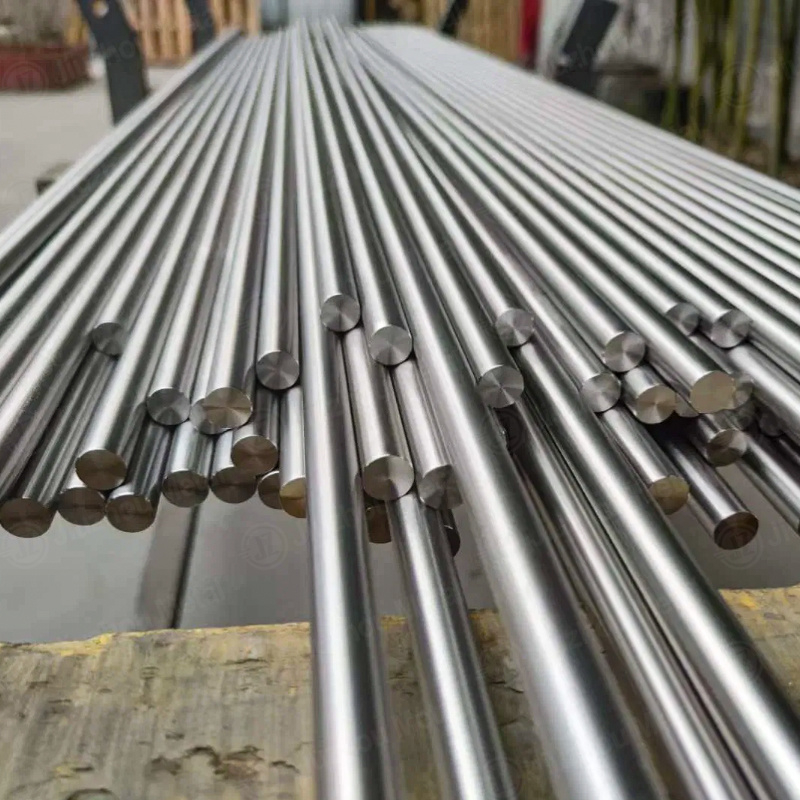

Product Name | Nickel Alloy 200 Bar |
Specification Range | Round Bar | 4mm-500mm |
Hexagon Bar | 18mm-57mm (11/16″ to 2-3/4″) |
Square Bar | 18mm-47mm (11/16″ to 1-3/4″) |
Flat Bar | 1/2 "to 10", Thickness: 2mm-150mm, Can provide customized |
Length | 1-6 meters, Length can be customized |
Standard | ASTM, AISI, JIS, GB, DIN, EN, etc. |
Surface | Black, Bright Polished, Rough Turning, Matt Surface Treatment, No.4, BA, etc. |
Certificate | ISO, SGS, BV |
Production Technology | Hot Rolling, Cold Rolling |
Chemical Composition
Gread | C | Si | S | Mn | Fe | Ni | Cu |
Alloy 200 | 0.15 max | 0.35 max | 0.01 max | 0.35 max | 0.4 max | 99.0 min | 0.25 max |
Mechanical Properties
Tensile Strength (ksi) | 0.2% Yield Strength (ksi) | Elongation% in 2 inches |
55 | 15 | 35 |
Physical Performance
| Units | Temperature in°C |
Density | 8.89 g/cm³ | Room |
Specific Heat | 0.108 Kcal/kg.C | Room |
Melting Range | 1435-1446°C | - |
Modulus of Elasticity | 205 KN/mm² | Room |
Electrical Resistivity | 9.6 µΩ.cm | 20° |
Coefficient of Expansion | 13.3 µm/m °C | 20 - 100° |
Thermal Conductivity | 70.3 w/m-° K | 20° |
Scope of Application
Used in electrical industry, chemical industry, heat exchanger, synthetic fiber processing, food processing, etc.
