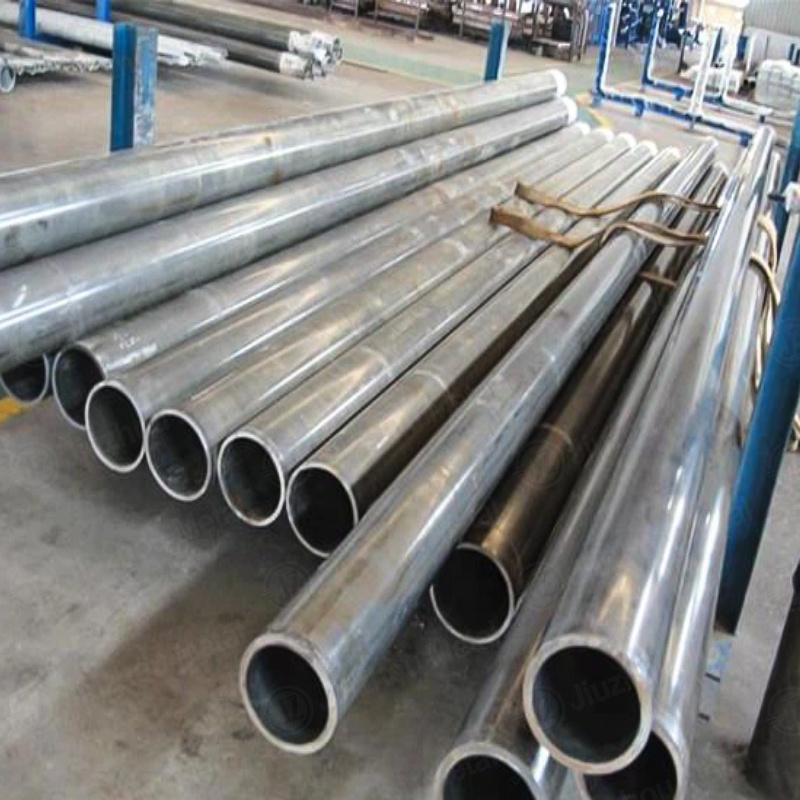

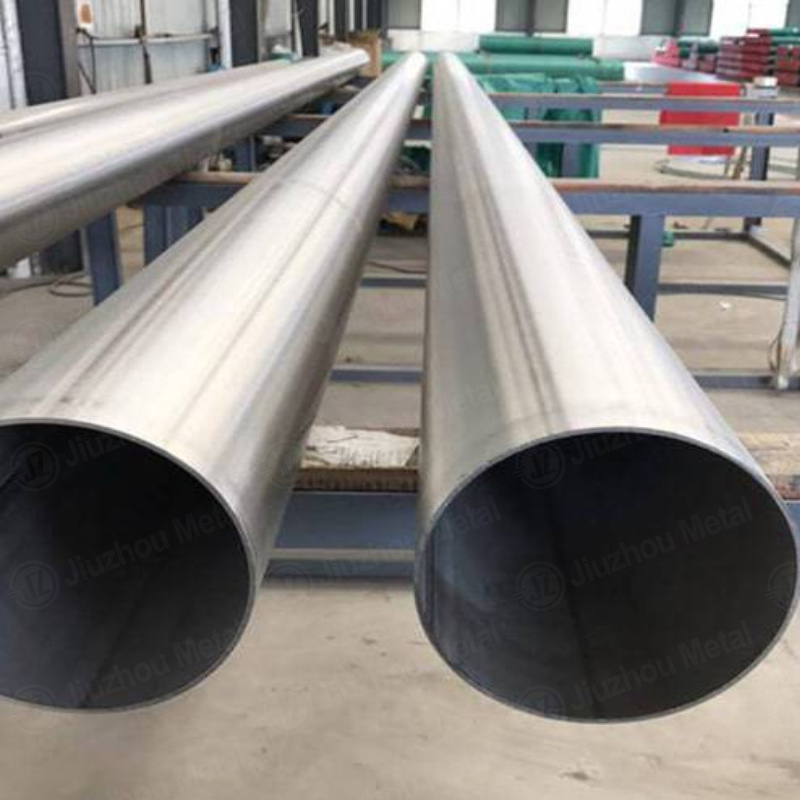

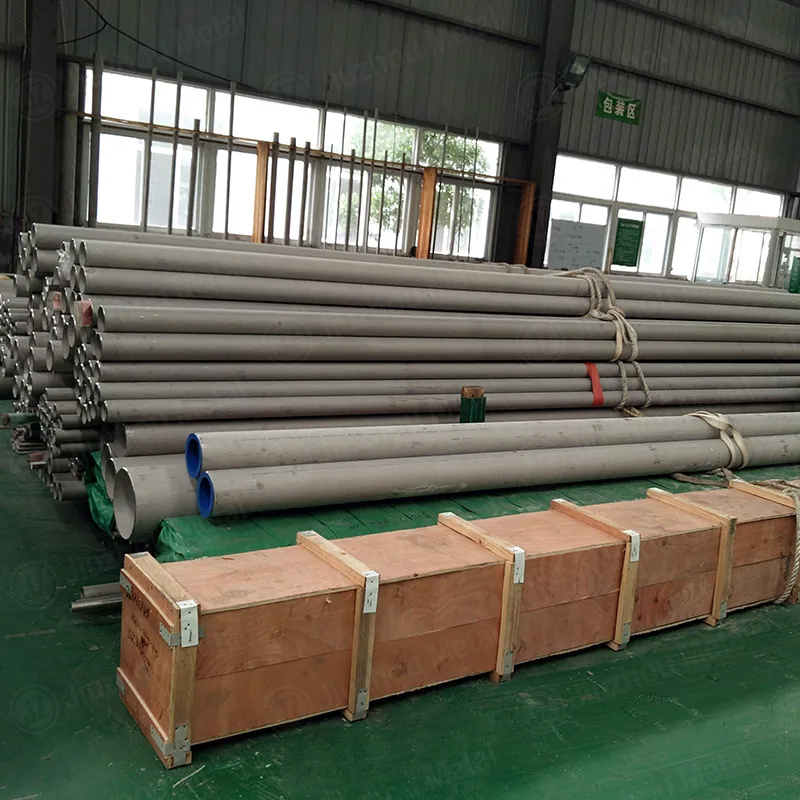

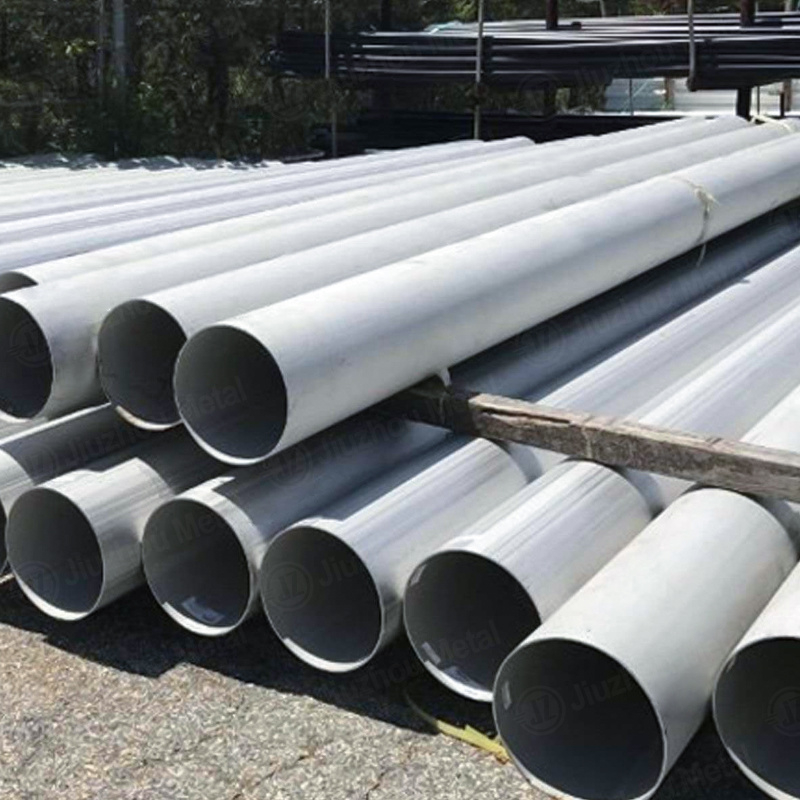

Titanium Grade 2 Pipe

Contact Person: Monica

Tel: +86 18961898768

WhatsApp: +86 18961898768

Email: sales06@cntitaniumalloy.com

MESSAGE

Home > Products > Alloy Pipe > Titanium Grade 2 Pipe

Product Description

Grade 2 titanium is a commercially pure titanium grade. It has moderate strength but excellent plasticity, making it easy to process and form.

Grade 2 titanium provides good corrosion resistance in atmospheres, seawater, wet chlorine, and oxidizing, neutral, or weakly reducing media. Its oxidation resistance is superior to most austenitic stainless steels, although its heat resistance is limited. This alloy is commonly used in humid atmospheres and seawater environments, where it exhibits particular resistance to pitting, acid corrosion, and stress corrosion. It is also resistant to alkalis, chlorides, chlorine-based organic substances, nitric acid, sulfuric acid, etc. However, it has poor corrosion resistance in reducing or oxygen-deficient media and those containing chromium salts.

Product Parameters

Product Name		Titanium Grade 2 Pipe
Outer Diameter	Round Pipe	4mm-200mm
	Square Tube	1010mm-100100mm
	Rectangular Tube	1020mm-50100mm
Wall Thickness		0.6mm-6.0mm
Length		1-6 meters, Length can be customized
Standard		ASTM, AISI, JIS, GB, DIN, EN, etc.
Surface		Black, Bright Polished, Rough Turning, Matt Surface Treatment, No.4, BA, etc.
Certificate		ISO, SGS, BV
Production Technology		Hot Rolling, Cold Rolling

Chemical Composition & Mechanical Properties

STM/ASME		GB	JIS	Element Content（wt%）						Mechanical Properties
				N,max	C,max	H,max	Fe,max	O,max	Others	Strength Of Extension	Ductility
										Mpa,min	%，min
Pure Titanium	Gr.1	TA1	Class1	0.03	0.08	0.015	0.2	0.18	-	240	24
	Gr.2	TA2	Class2	0.03	0.08	0.015	0.3	0.25		345	20
	Gr.3	TA3	Class3	0.05	0.08	0.015	0.3	0.35		450	18
	Gr.4	TA4	Class4	0.05	0.08	0.015	0.5	0.4		550	15
Titanium Alloy	Gr.5	TC4	Class60	0.05	0.08	0.015	0.4	0.2	AI:5.5-6.75	895	10
		Ti-6A1-4V							V:3.5-4.5
	Gr.7	TA9	Class12	0.03	0.08	0.015	0.3	0.25	Pd:0.12-0.25	345	20
	Gr.9	TC2	Class61	0.03	0.08	0.015	0.25	0.15	AI:2.5-3.5	620	15
									V:2.0-3.0
	Gr.11	TA9-1	Class11	0.03	0.08	0.015	0.2	0.18	Pd:0.12-0.25	240	24
	Gr.23	TC4 ELI	Class60E	0.03	0.08	0.0125	0.25	0.13	AI:5.5-6.5	828	10
									V:3.5-4.5
