Product Description
Nickel 200 is a high-purity metal consisting primarily of nickel with a purity of 99.0%. Due to its excellent physical and chemical properties, it is widely used in various fields. Nickel alloy 200 coil has high corrosion resistance, can withstand corrosion from various acid and alkali liquids, and maintains stable performance at high temperatures. In addition, nickel 200 coil has good thermal and electrical conductivity and is an important electrical and thermal conductive material. This metal can be processed and heated through various processes to make products of different shapes and specifications. Lastly, Nickel 200 is a pure commercial nickel with extremely low carbon content that has been approved for use in high temperature environments up to 1230°C.


Product Parameters

Product Name

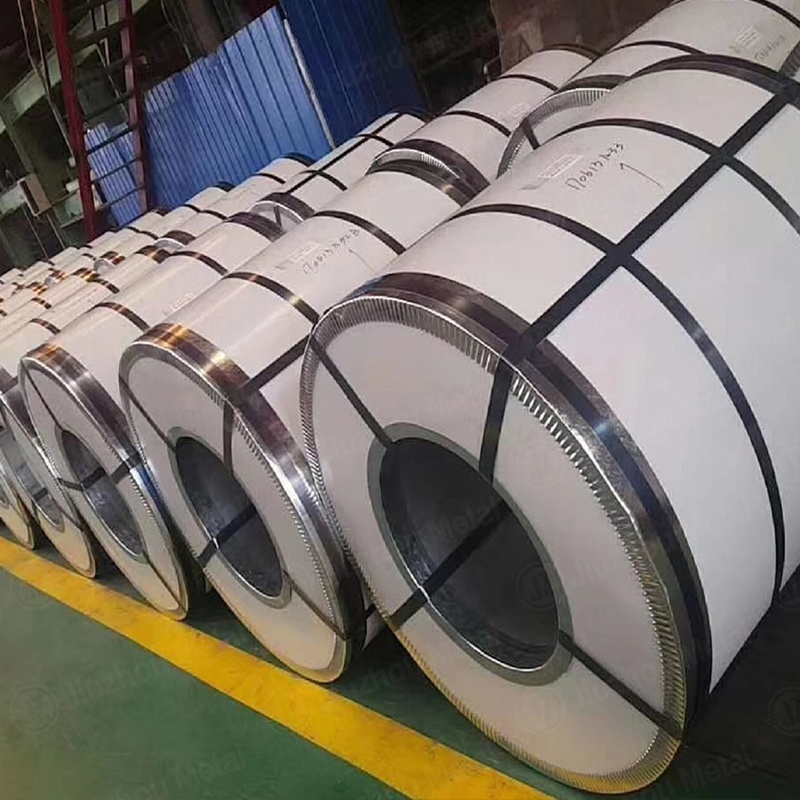

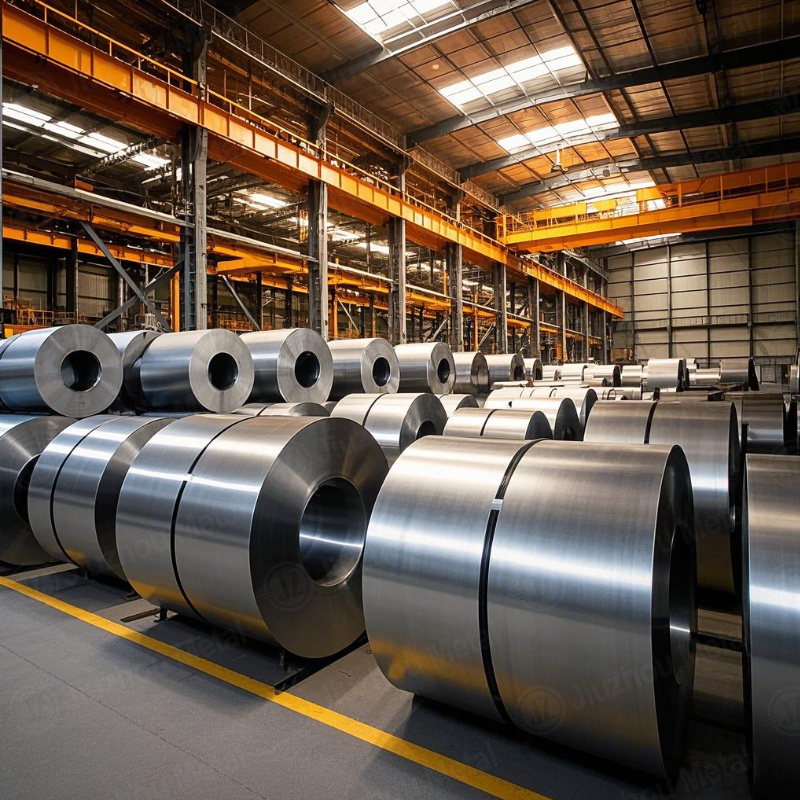

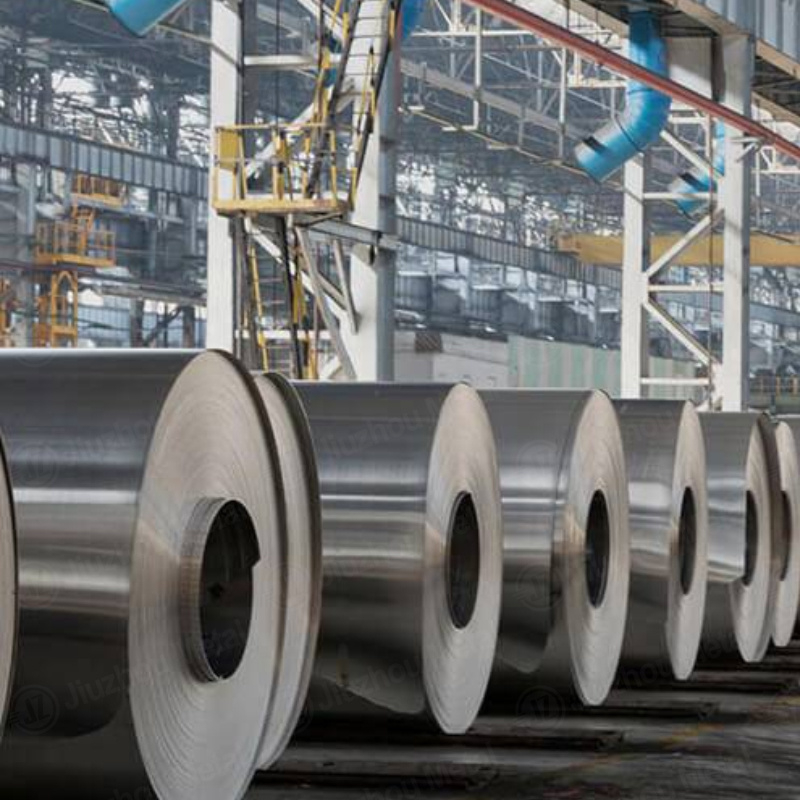

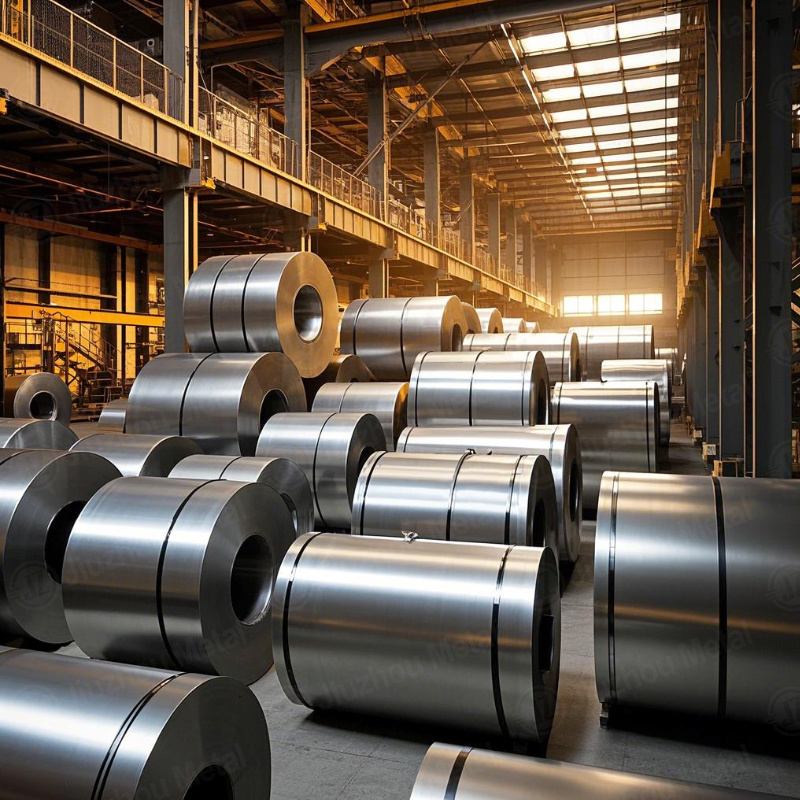

Nickel Alloy 200 Coil

Thickness

2.5mm-10.0 mm

Length

2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc.

Width

610-2000 mm

Standard

ASTM, AISI, JIS, GB, DIN, EN, etc.

Surface

BA, 2B, NO.1, NO.4, 4K, HL, 8K, etc.

Certificate

ISO, SGS, BV

Production Technology

Hot Rolling, Cold Rolling


Chemical Composition

Gread

C

Si

S

Mn

Fe

Ni

Cu

Alloy 200

0.15 max

0.35 max

0.01 max

0.35 max

0.4 max

99.0 min

0.25 max


Mechanical Properties

Tensile Strength (ksi)

0.2% Yield Strength (ksi)

Elongation% in 2 inches

55

15

35


Physical Performance


Units

Temperature in°C

Density

8.89 g/cm³

Room

Specific Heat

0.108 Kcal/kg.C

Room

Melting Range

1435-1446°C

-

Modulus of Elasticity

205 KN/mm²

Room

Electrical Resistivity

9.6 µΩ.cm

20°

Coefficient of Expansion

13.3 µm/m °C

20 - 100°

Thermal Conductivity

70.3 w/m-° K

20°


Scope of Application

Used in electrical industry, chemical industry, heat exchanger, synthetic fiber processing, food processing, etc.
